ASM-18 Capsule Slip Ring

  • Number of Circuits: 18Circuits
  • Insulation Resistance: ≥50MΩ200VDC(P) ≥10MΩ100VDC(S)
  • Voltage: 110Voltage [AC/DC]
  • Optional: It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc.Consult immediately

This unit is ideal for machines that need to rotate freely while still sending power or data between moving and non-moving parts. It plays an important role in equipment like precision rotary tables, electrical testing devices, and various control instruments used in manufacturing. The ASM-18 is a compact, ready-to-use slip ring that uses gold contacts where it spins. These gold contacts help the unit last longer, reduce electrical noise, avoid signal interference, and keep resistance low.

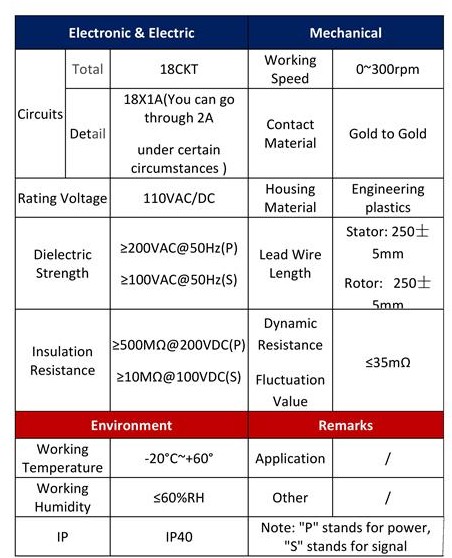

Dimension Table

Dimension Table

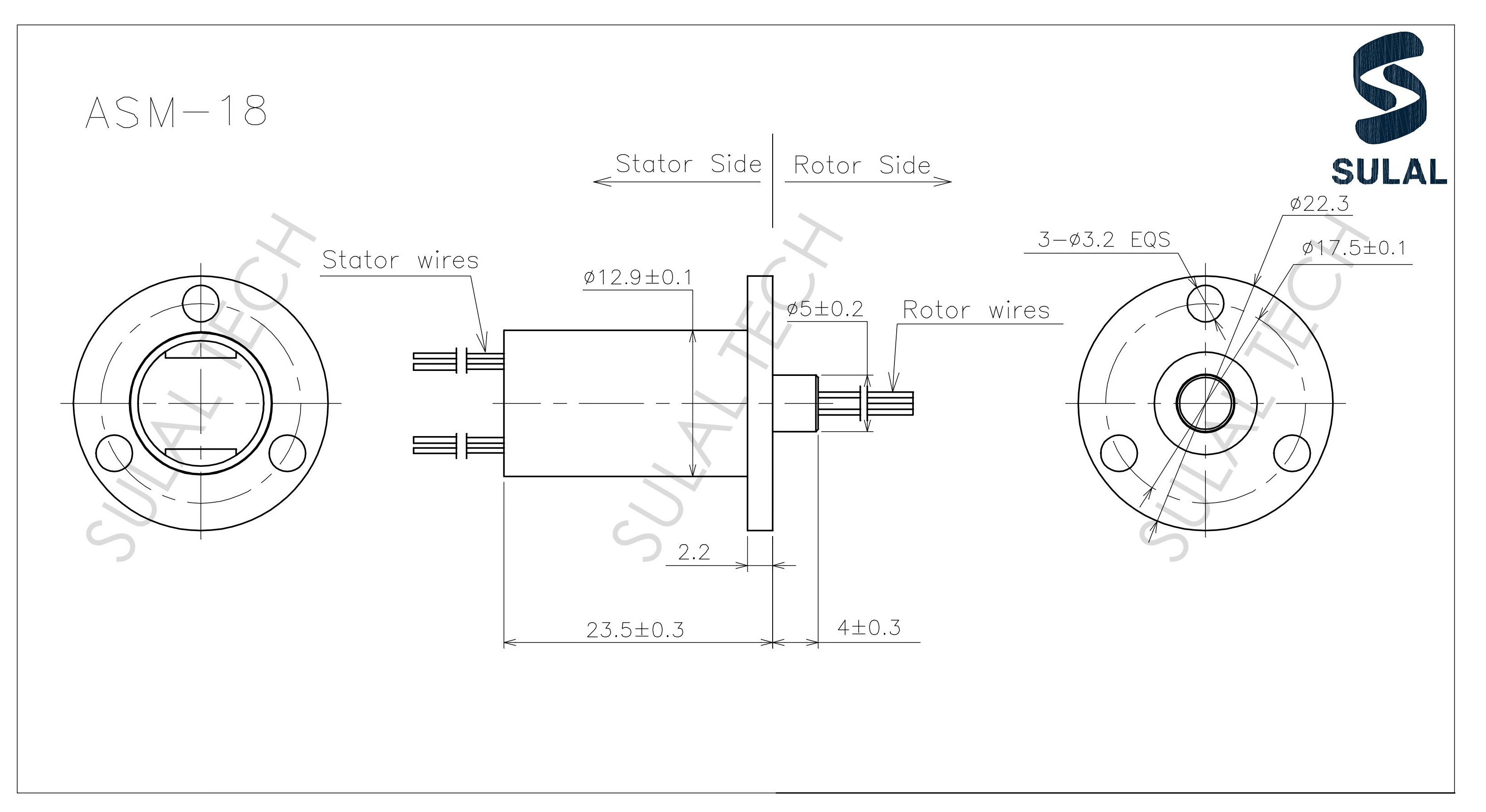

ASM-18-Outline Drawing

ASM-18-Outline Drawing
