ASM-30 Capsule Slip Ring
- Number of Circuits: 30Circuits
- Insulation Resistance: ≥50MΩ200VDC(P) ≥10MΩ100VDC(S)
- Voltage: 110Voltage [AC/DC]
- Optional: It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc.Consult immediately
The ASM-30 is a compact slip ring model offering 30 separate circuits and can operate at speeds of up to 300 rpm. It features advanced fiber brush technology, which reduces wear and ensures reliable performance. With its precise build quality, this model is designed for longer service life and dependable operation.

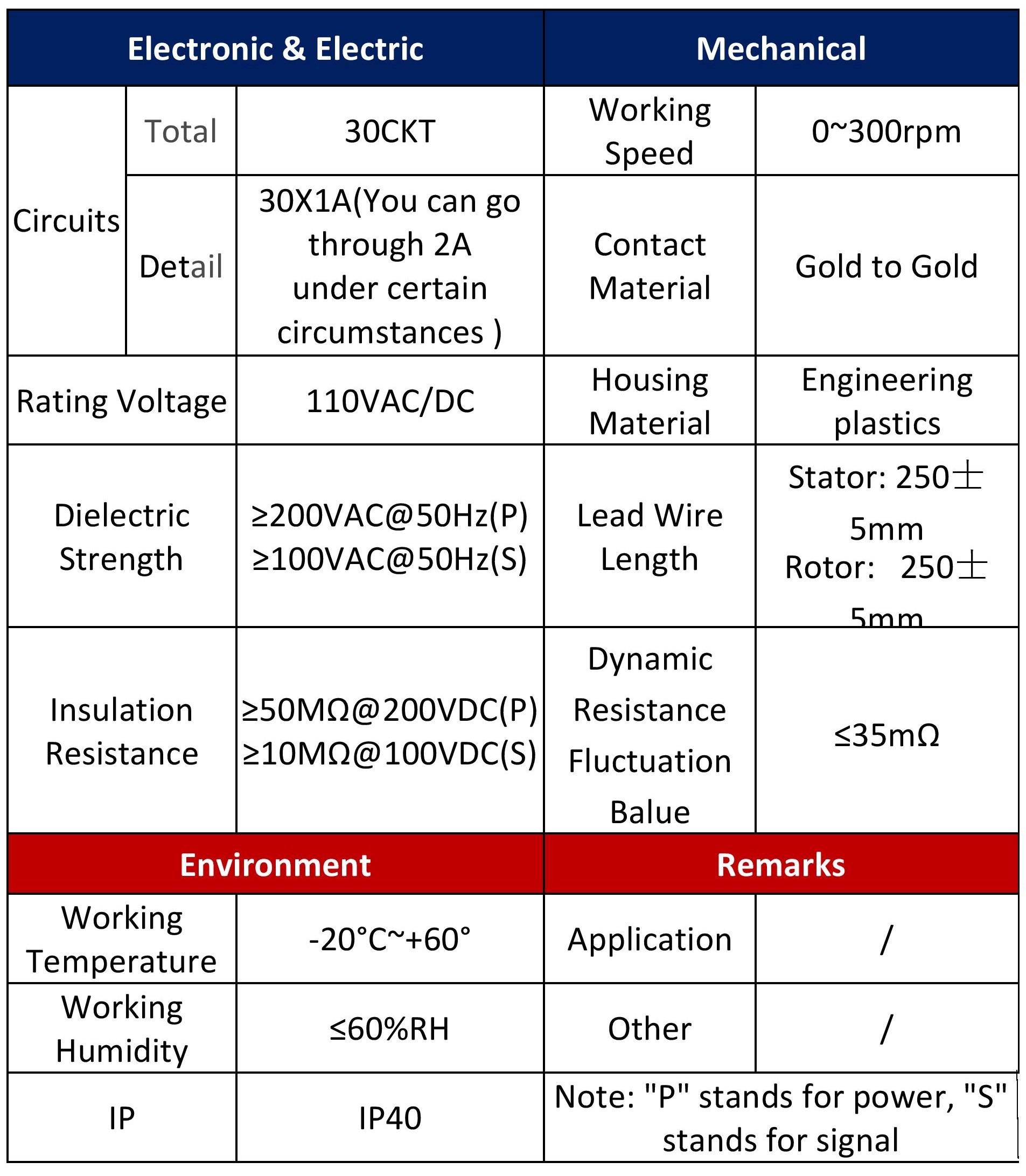

Dimension Table

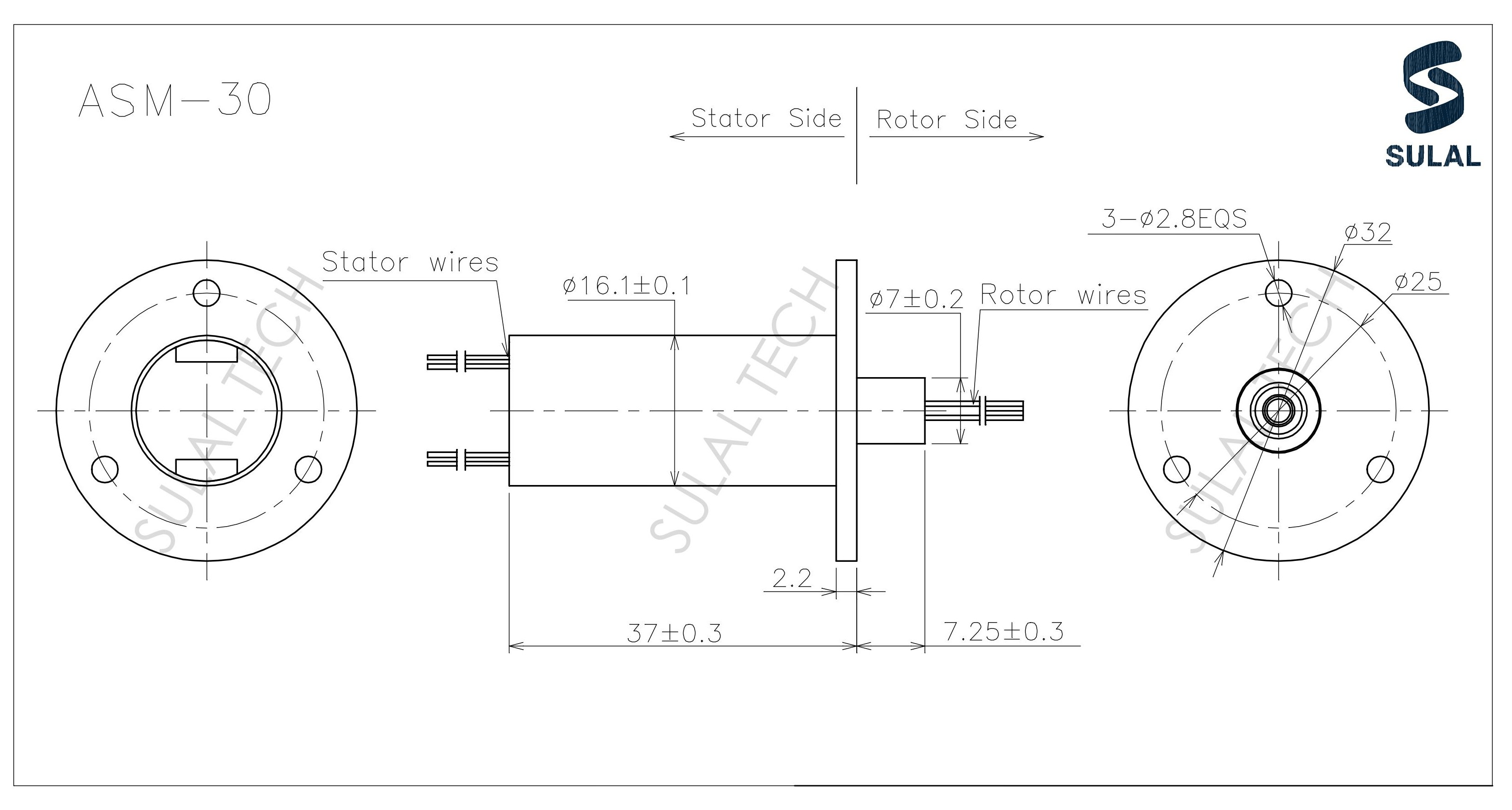

ASM-30-Outline Drawing
