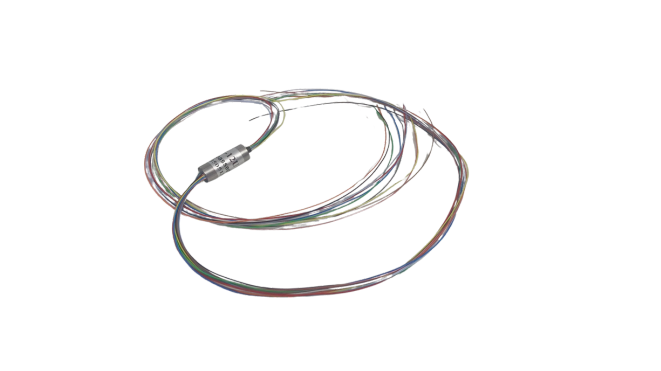

ASMS-12 Capsule Slip Ring  main view

ASMS-12 Capsule Slip Ring

  • Number of Circuits: 12
  • Current: 1A
  • Voltage: 48V
  • Optional: It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc.Consult immediately

This slip ring utilizes a specialized fiber coating technique that helps reduce electrical noise and minimize wear. It also incorporates U.S. military-grade gold-plated surface technology, ensuring extended product lifespan and reliable performance. Capable of transmitting up to 30 different signal types—including USB, HDMI, SDI, Ethernet, and RS422—it supports seamless 360-degree rotation. Various size options are available to suit specific application requirements.

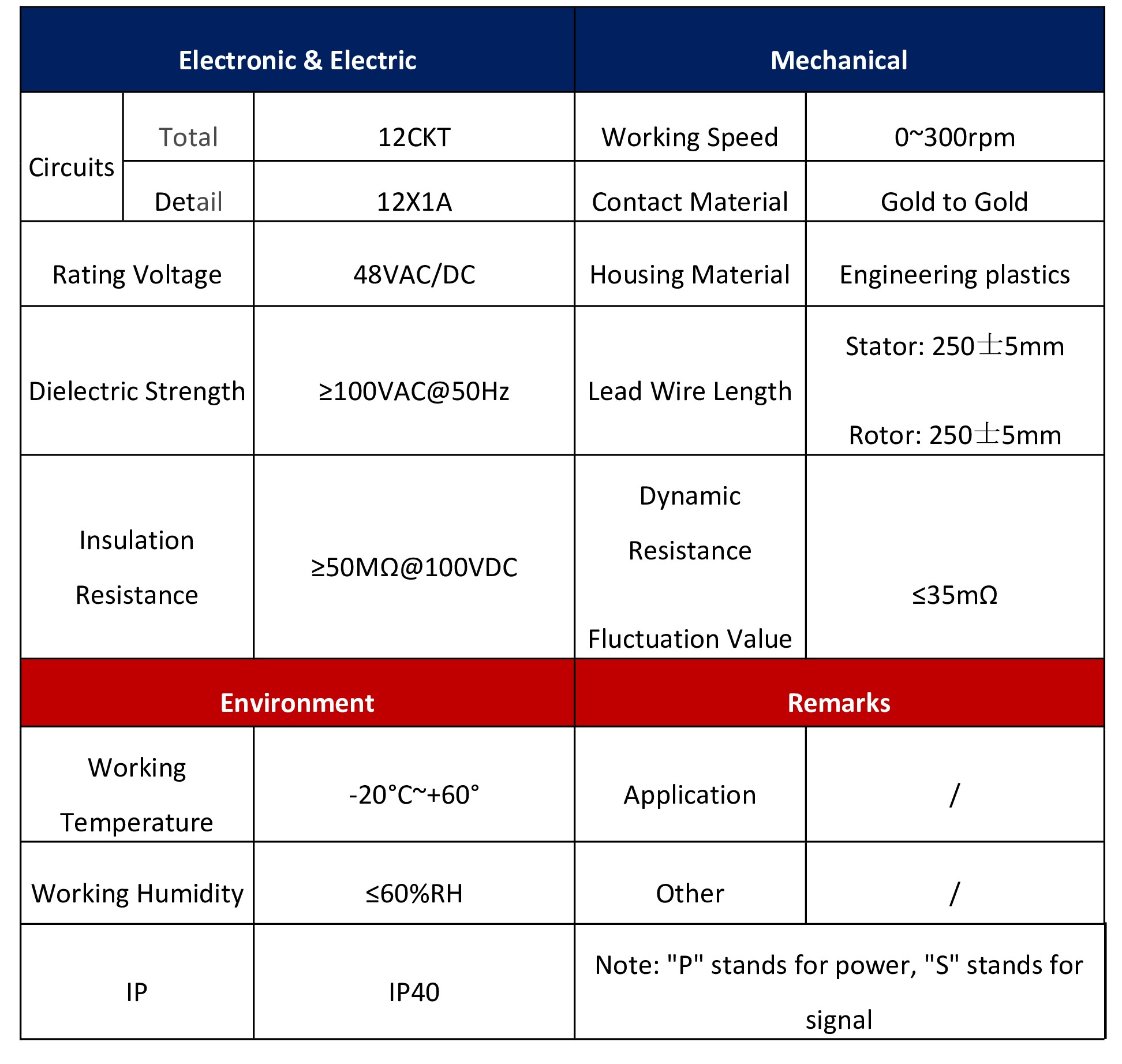

Dimension Table

Dimension Table

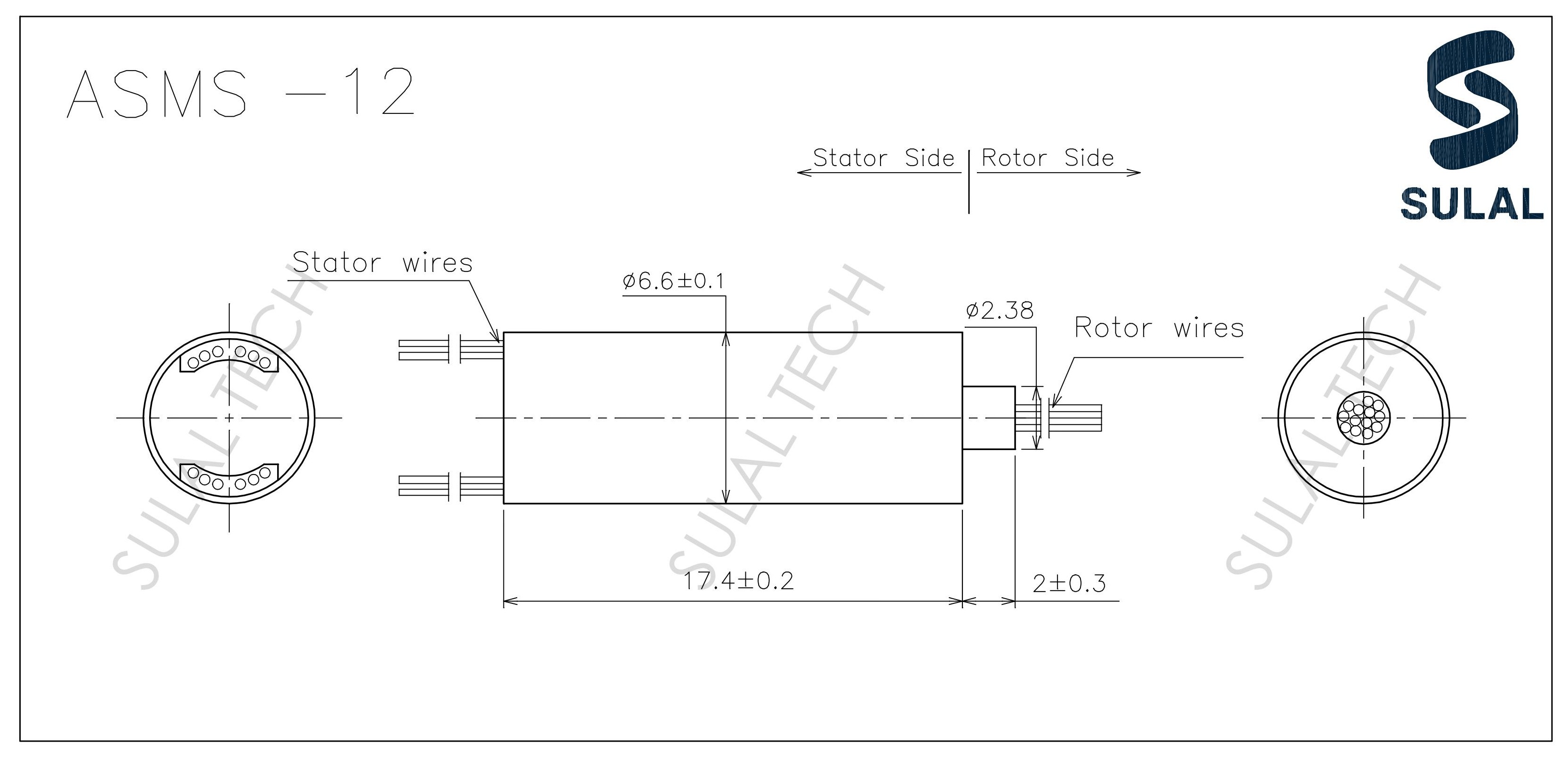

ASMS-12-Outline Drawing

ASMS-12-Outline Drawing
