AST120-Through-bore Slip Rings - Through Bore Slip Ring
The AST120-Through-bore Slip Rings is a high-performance through bore slip ringmanufactured by Sulal Tech Pvt Ltd, a leading slip ring manufacturer. This precision-engineered rotary electrical connector is designed for applications requiring reliable signal and power transmission in rotating systems.
Featuring 6 | 12 |18 | 24 Circuits with current capacity up to industrial grade, this slip ring ensures consistent electrical performance in demanding environments. Ideal for industrial automation, robotics, wind turbines, and precision machinery.
Key Features
- ✓Gold-to-gold contact technology for superior conductivity
- ✓Long operational lifespan (270+ million rotations)
- ✓Low electrical noise and maintenance-free design
- ✓Made in India by certified slip ring manufacturer
Technical Specifications
- Number of Circuits: 6 | 12 |18 | 24 Circuits
- Insulation Resistance: ≥500MΩ@500VDC
- Voltage: 240Voltage [AC/DC]
- Dielectric Strength: 1000VAC@50Hz
Manufacturer Details
Manufactured by Sulal Tech Pvt Ltd, Chennai, Tamil Nadu, India. Authorized distributor and slip ring supplier serving industrial automation, robotics solutions, and precision engineering sectors across India and globally.
Common Applications
Industrial automation slip rings
Reliable slip ring solution for industrial automation slip rings requiring continuous rotation with signal and power transmission.
Robotics slip ring solutions
Reliable slip ring solution for robotics slip ring solutions requiring continuous rotation with signal and power transmission.
Wind turbine slip rings
Reliable slip ring solution for wind turbine slip rings requiring continuous rotation with signal and power transmission.
A slip ring is used in electromechanical systems that require continuous, unrestricted rotation while transferring power or signals between a stationary and rotating part. It's also known as a rotary electrical interface, collector, swivel, or commutator. Slip rings help improve overall system performance by simplifying the design and avoiding the use of fragile, dangling wires at moving joints.

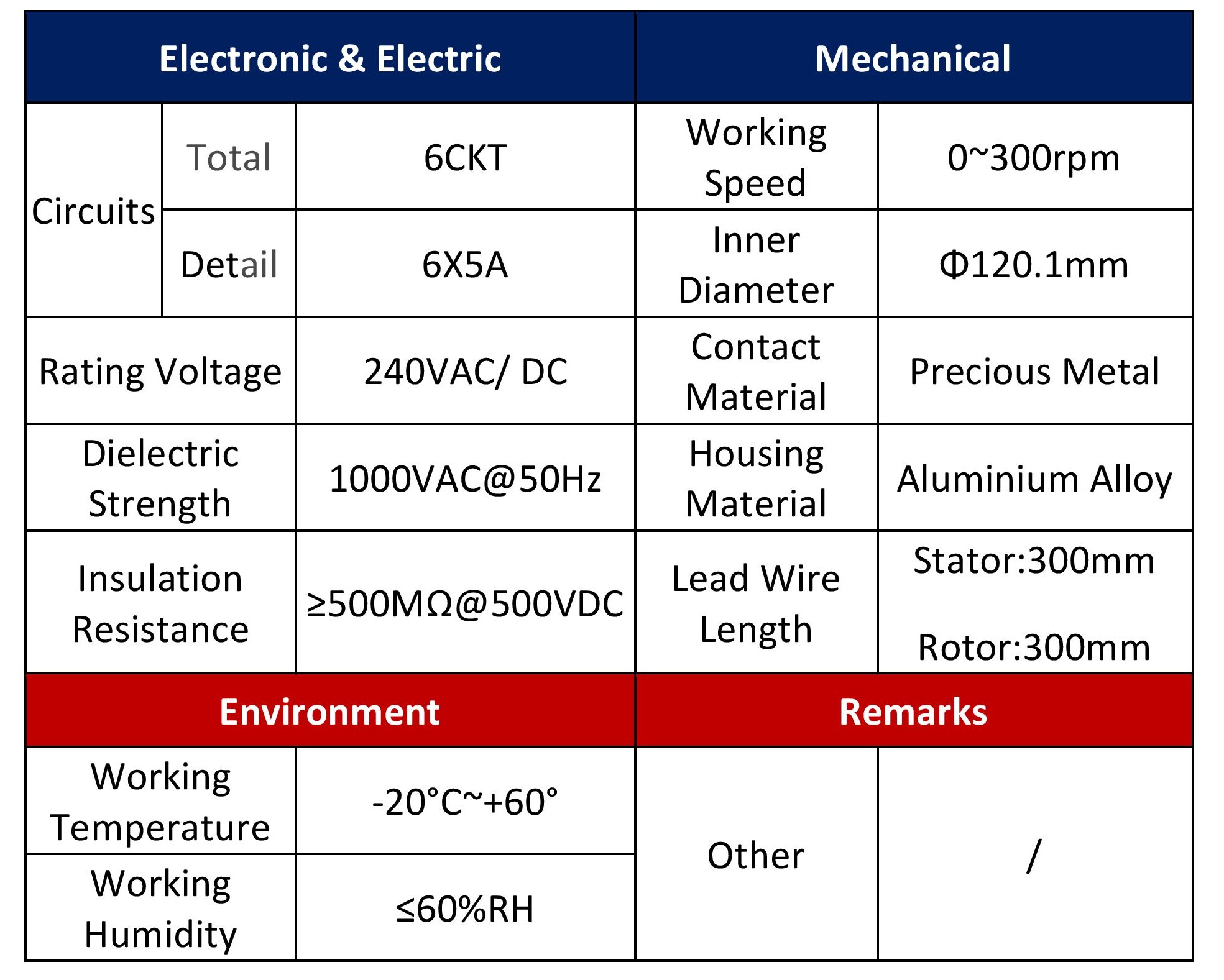

Dimension Table

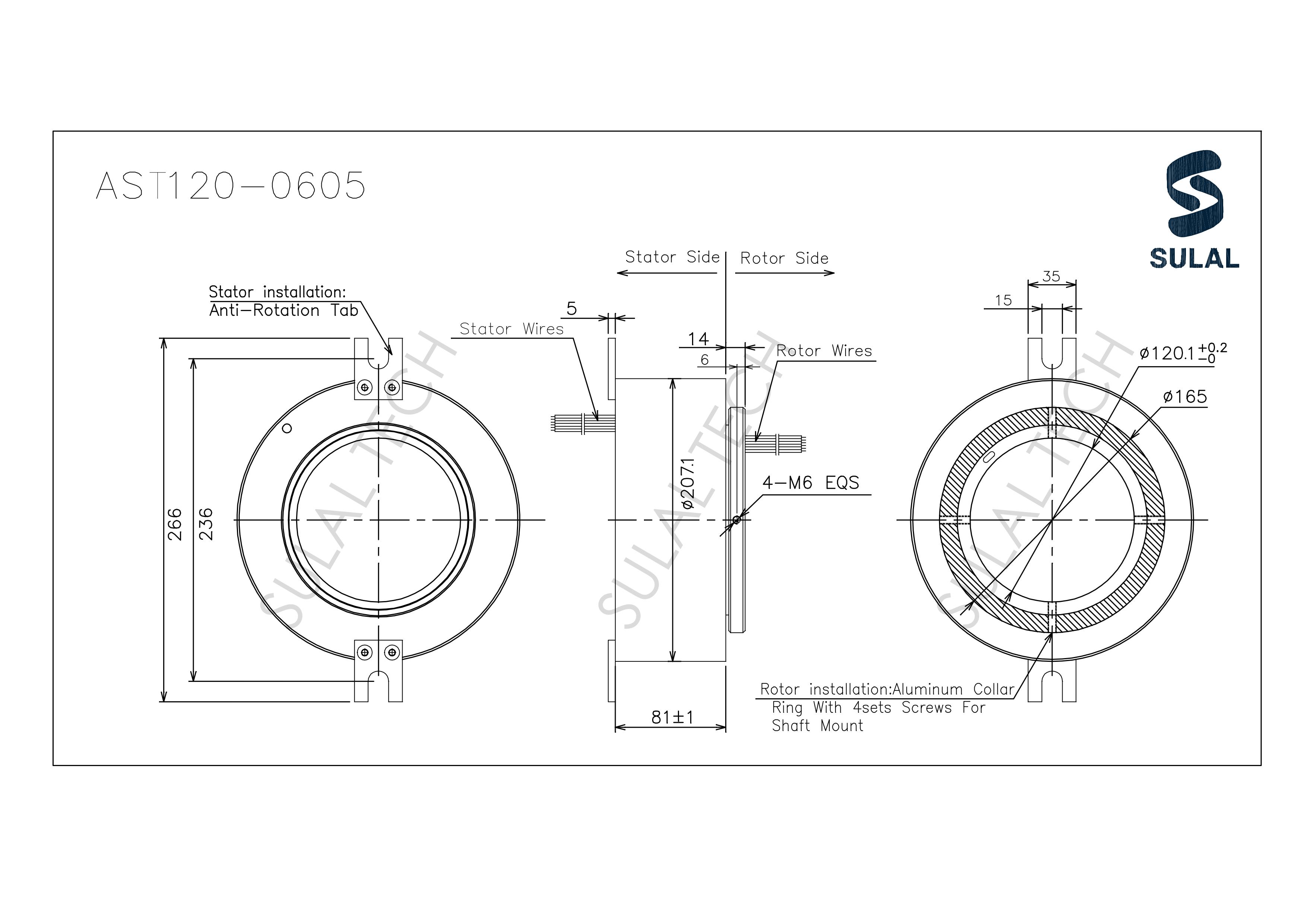

AST120-0605-Outline Drawing

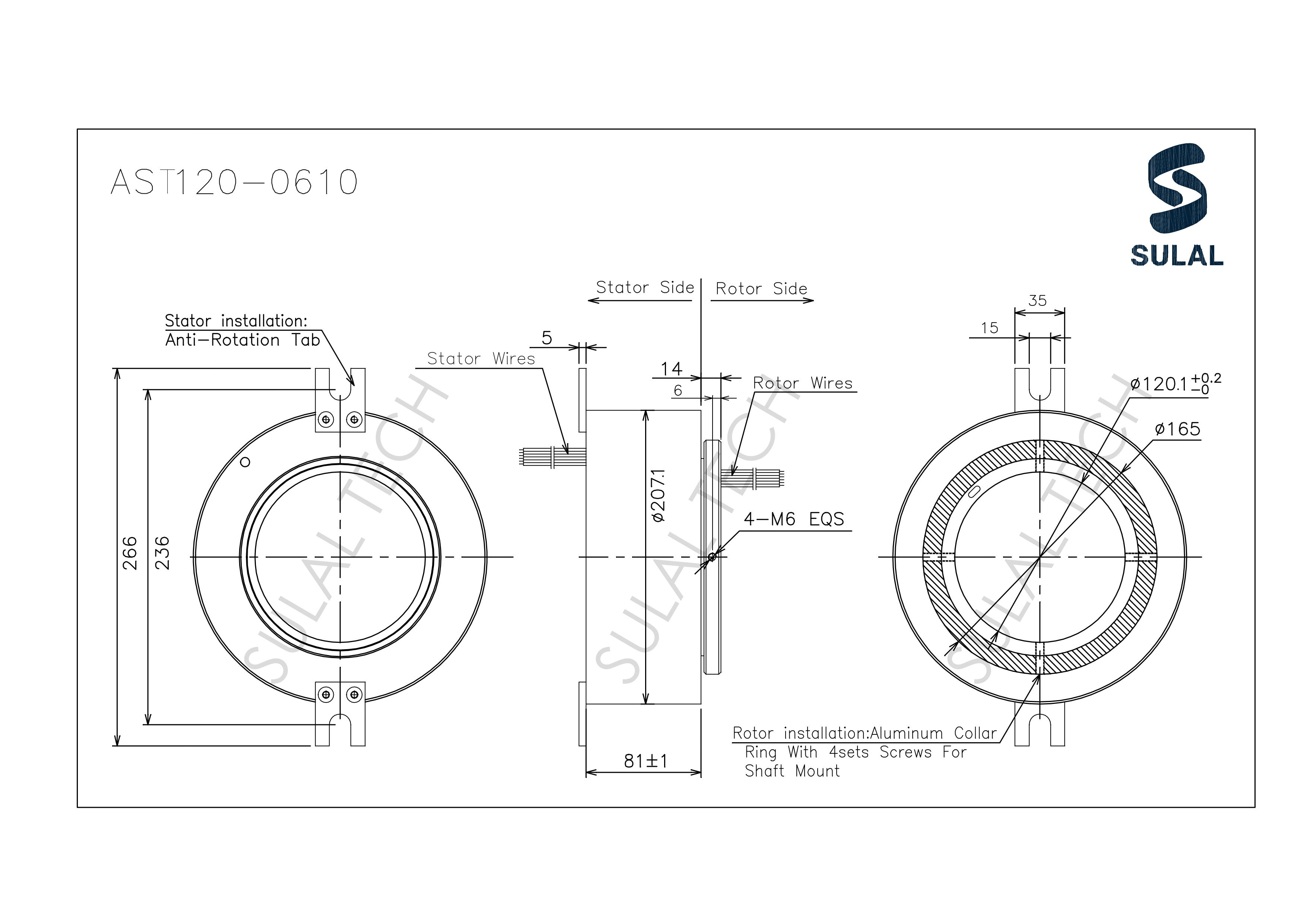

AST120-0610-Outline Drawing

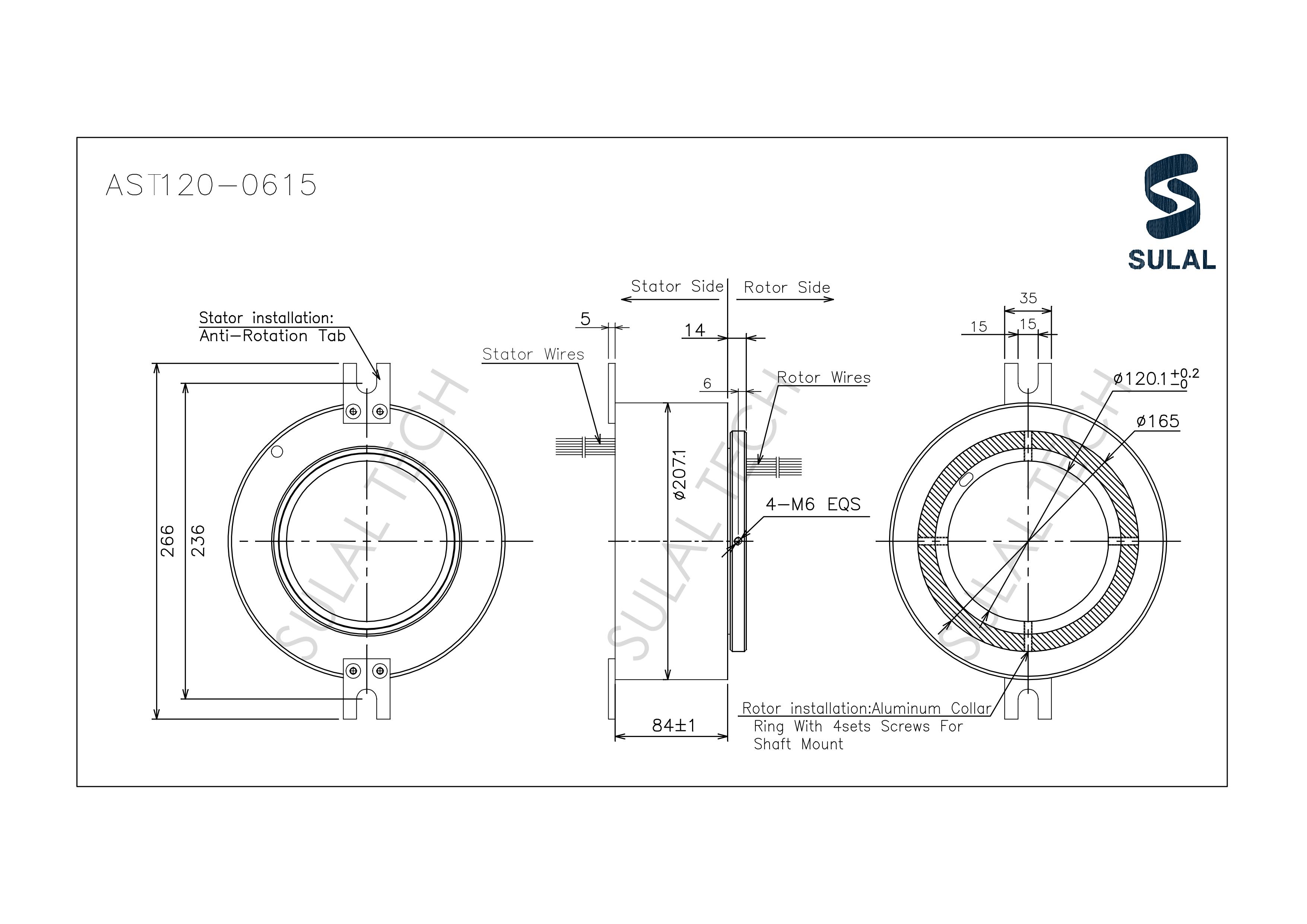

AST120-0615-Outline Drawing

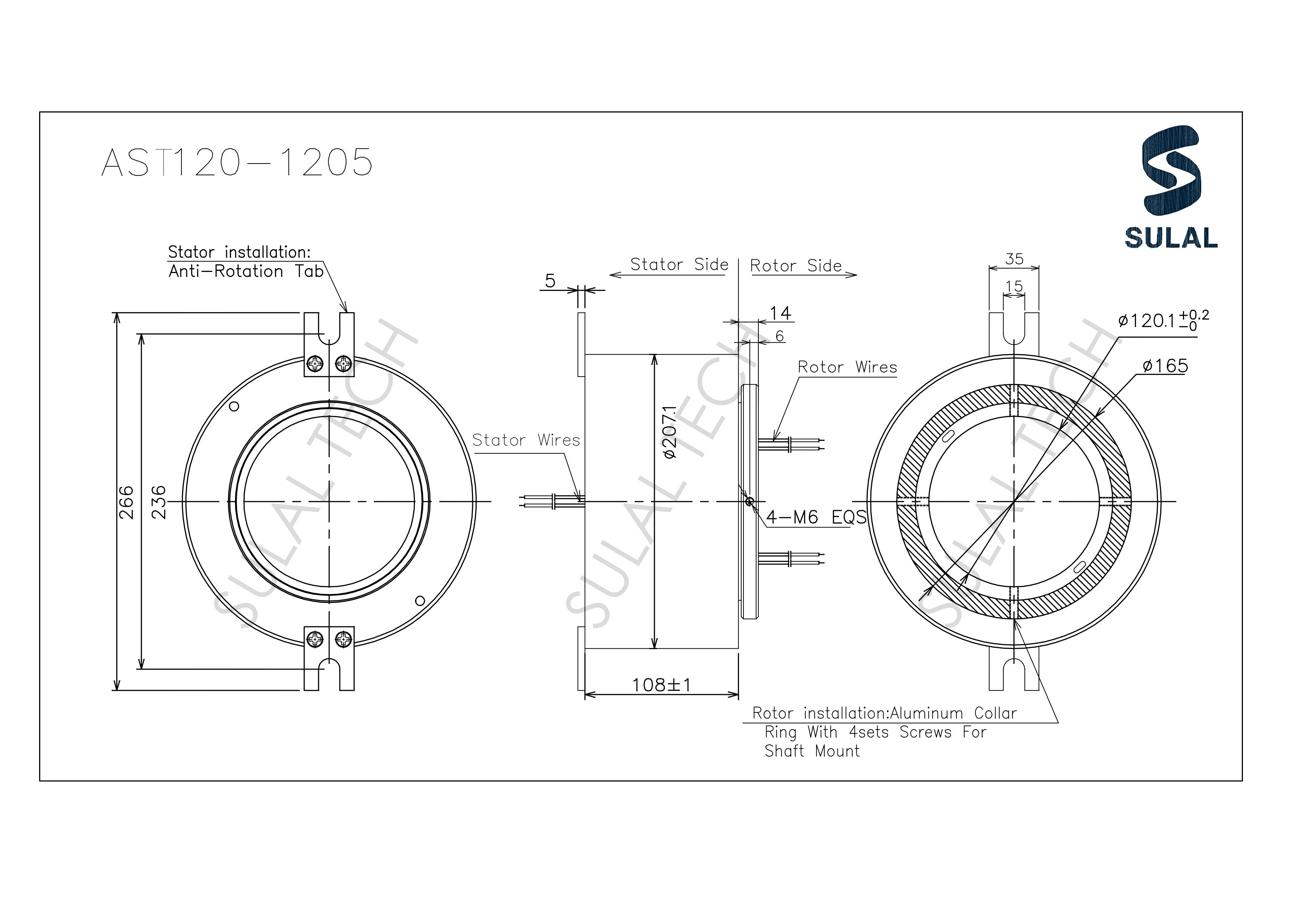

AST120-1205-Outline Drawing

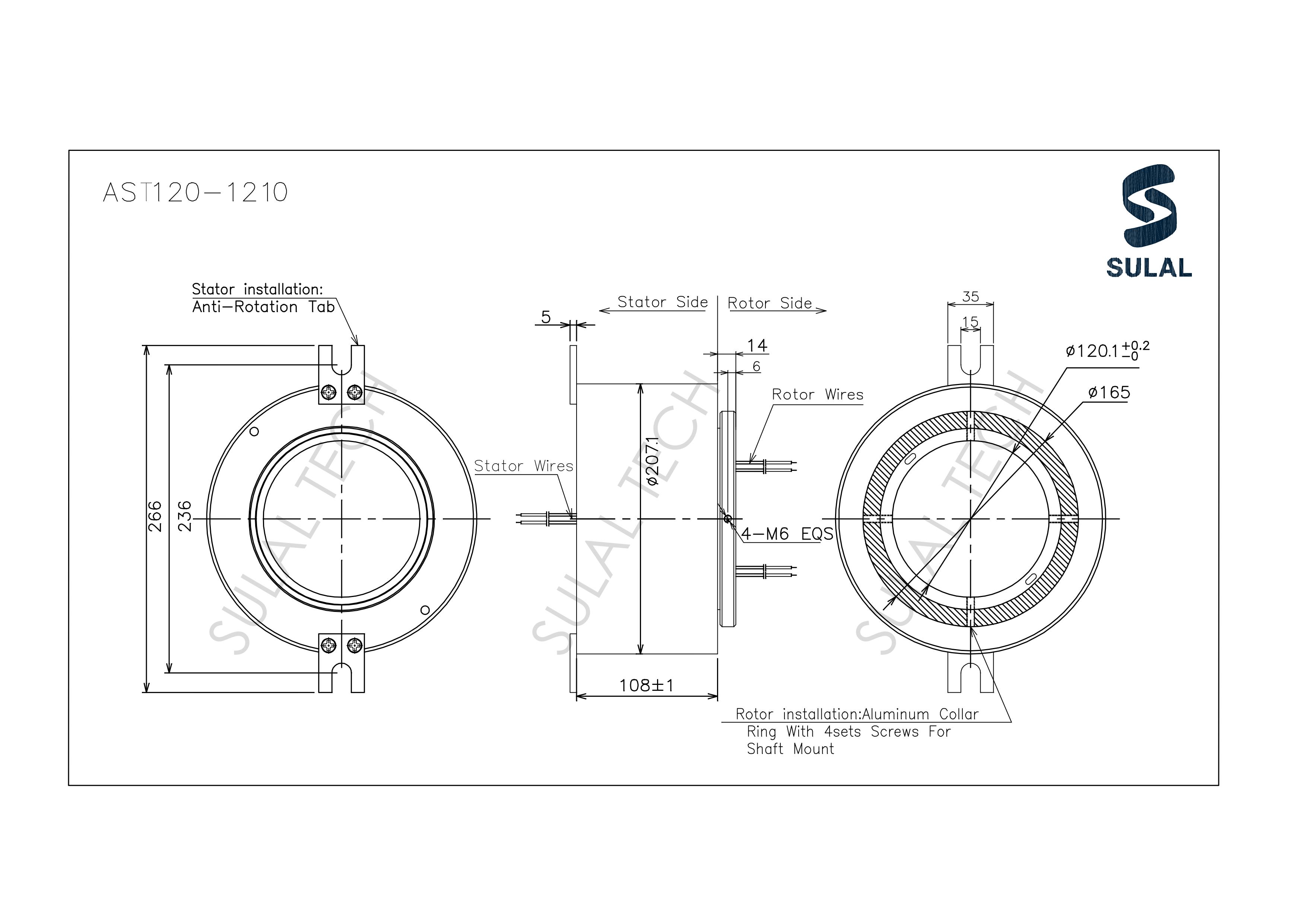

AST120-1210-Outline Drawing

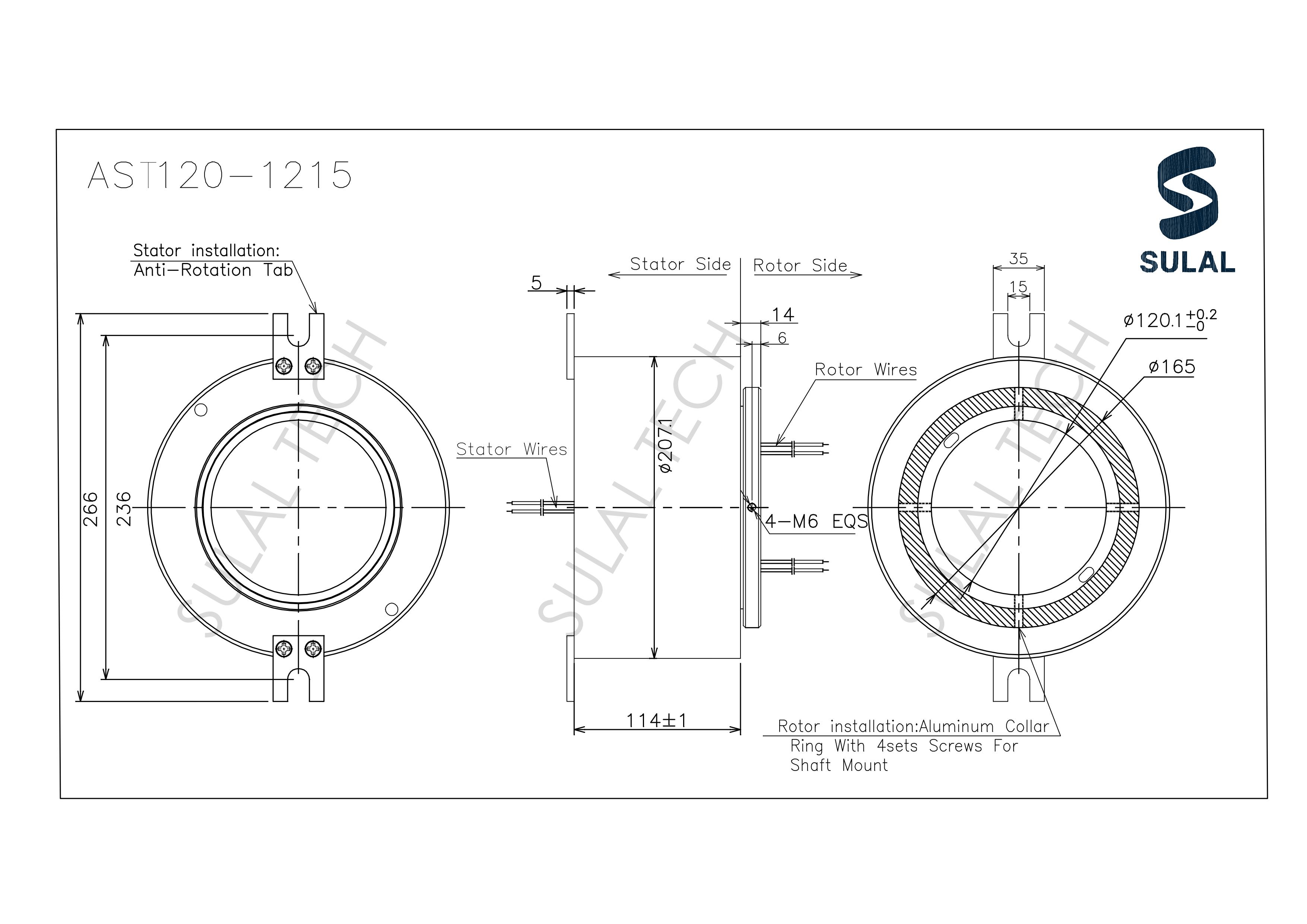

AST120-1215-Outline Drawing

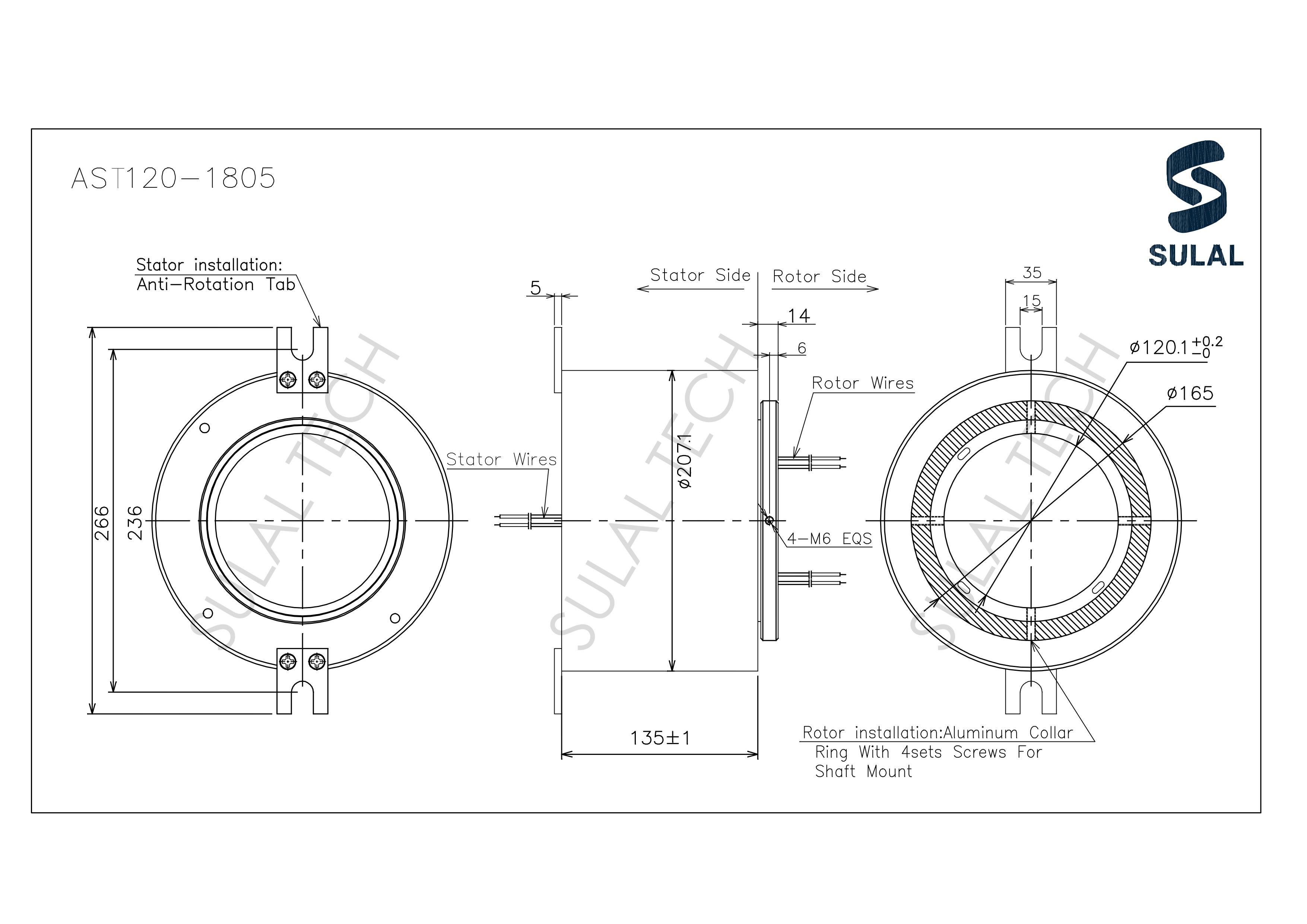

AST120-1805-Outline Drawing

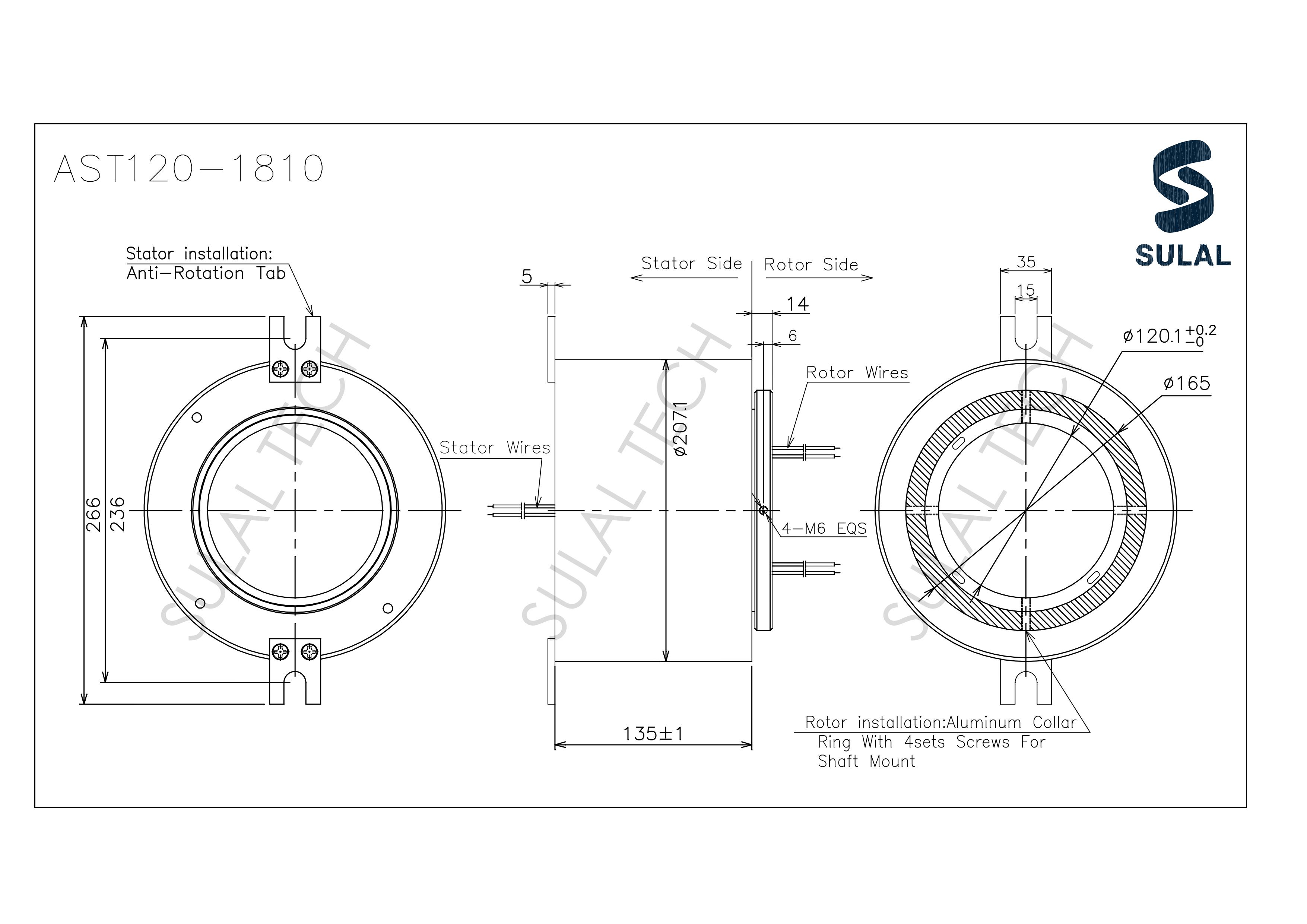

AST120-1810-Outline Drawing

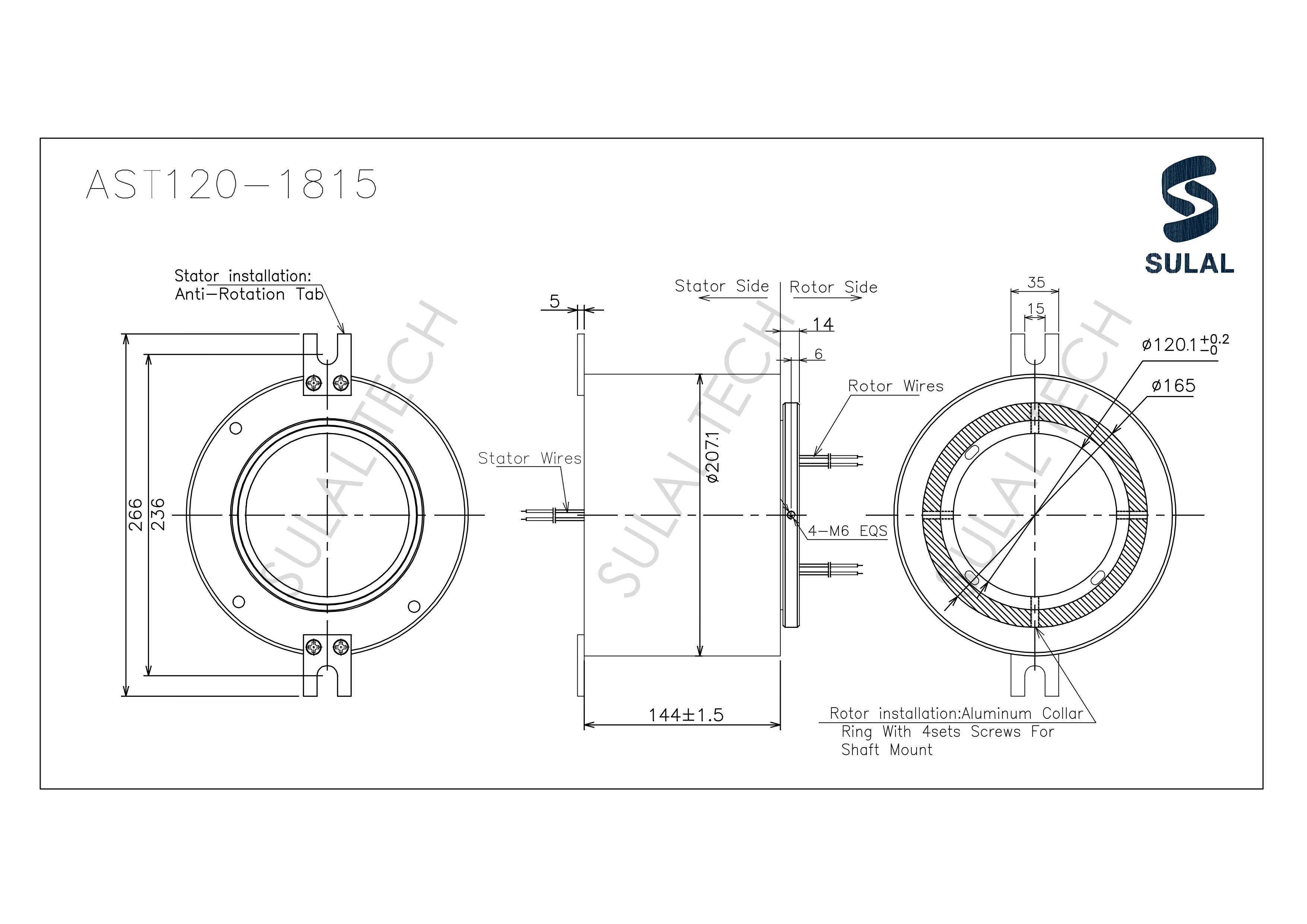

AST120-1815-Outline Drawing

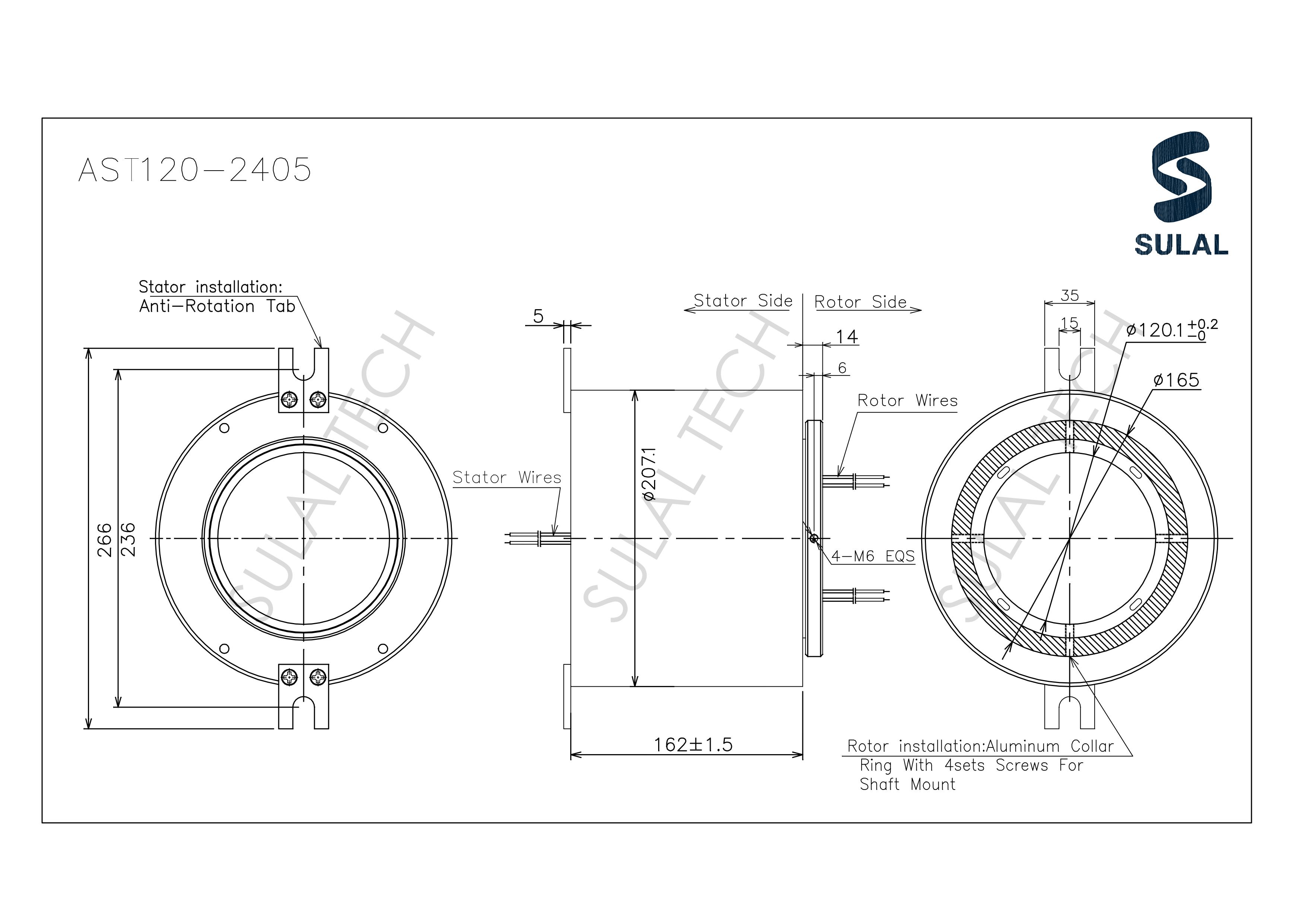

AST120-2405-Outline Drawing

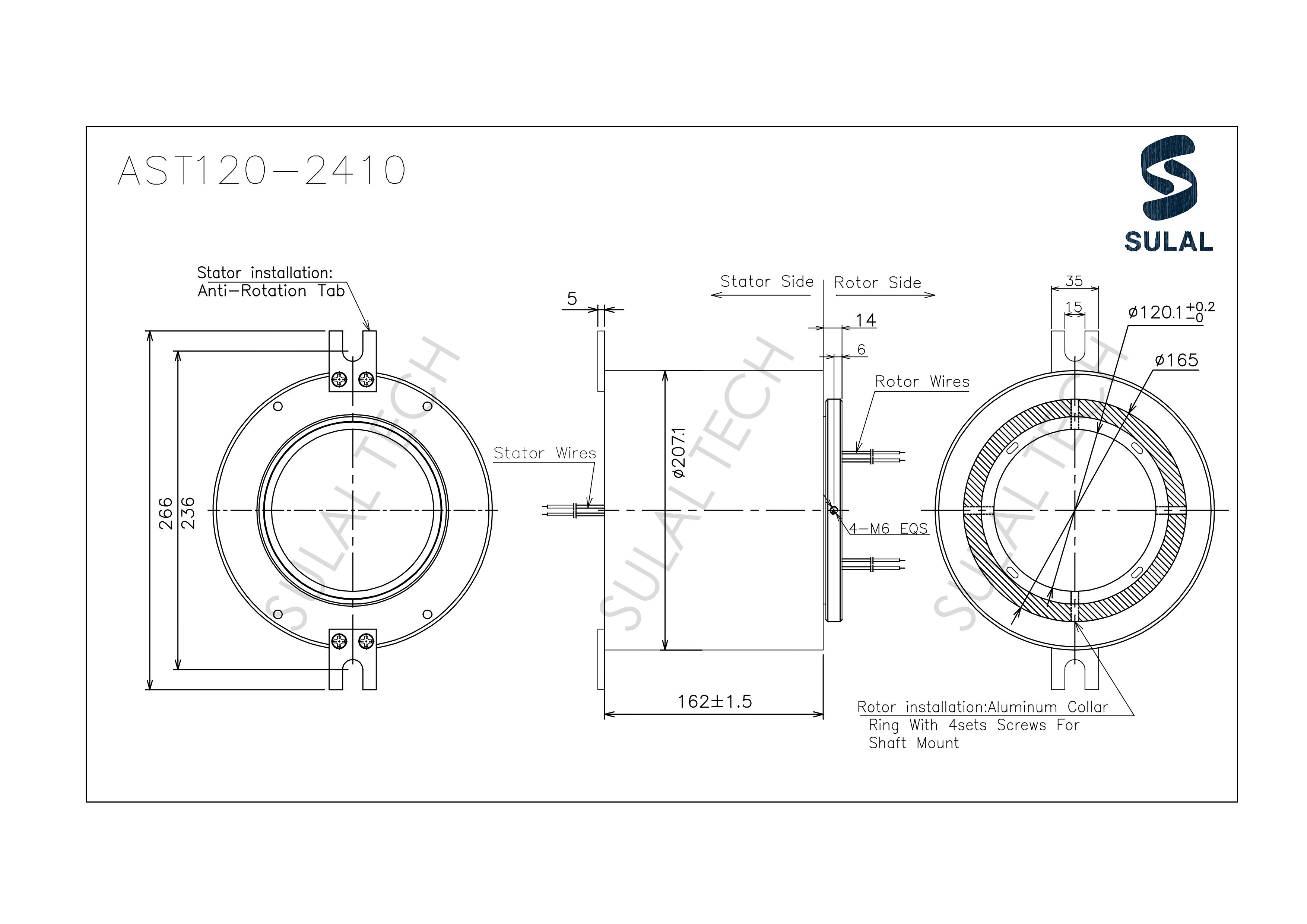

AST120-2410-Outline Drawing

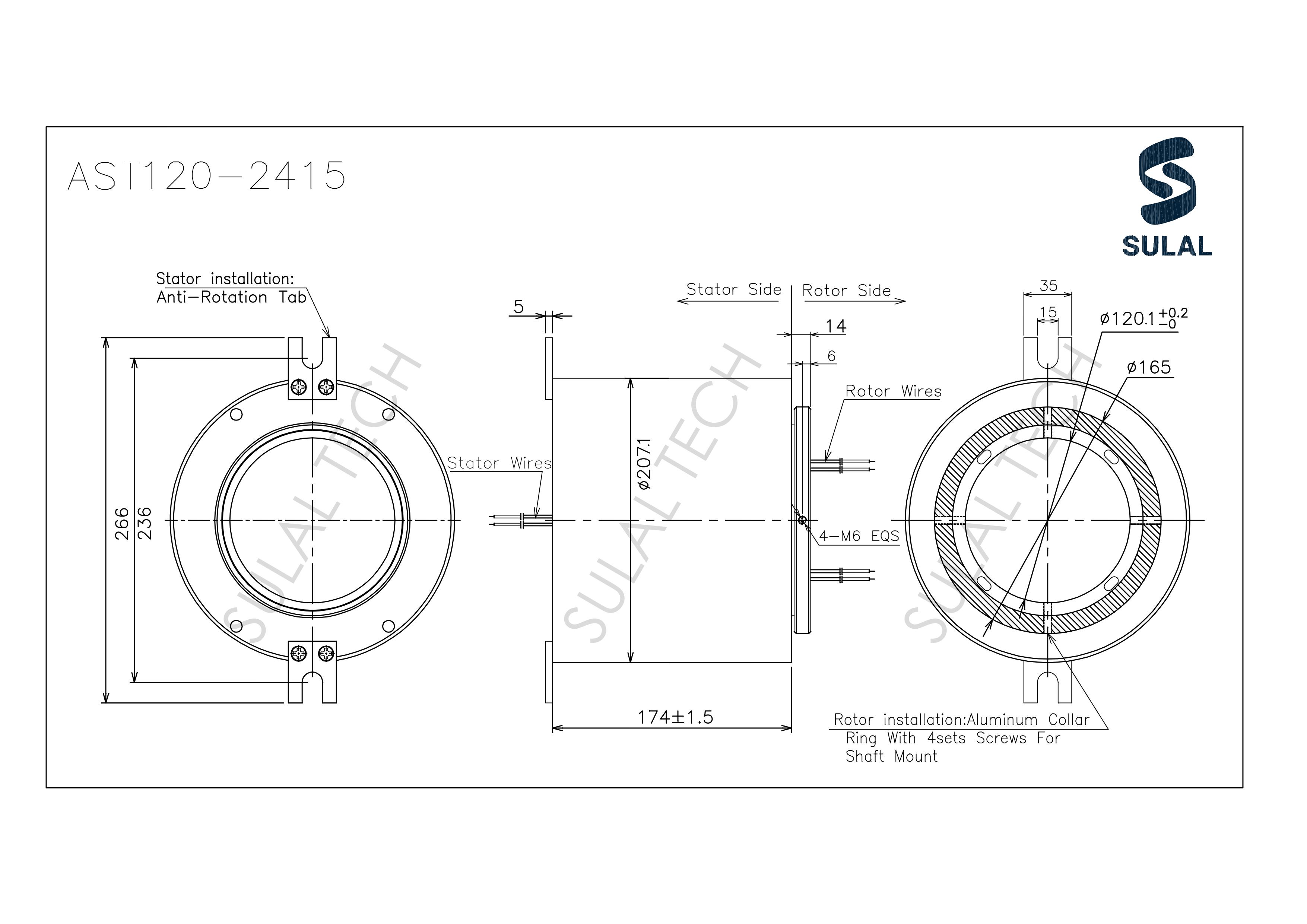

AST120-2415-Outline Drawing
Related Through Bore Slip Ring Models
AST012-0605 through bore slip ring
View specifications →
AST012-0610 through bore slip ring
View specifications →
AST012-1205 through bore slip ring
View specifications →
AST012-1210 through bore slip ring
View specifications →
Why Choose Sulal Tech Pvt Ltd?
🏭 India's Leading Manufacturer
Sulal Tech Pvt Ltd is India's most trusted slip ring manufacturer, based in Chennai, Tamil Nadu. As an authorized dealer and distributor, we supply high-quality rotary joints across India and globally.
✨ Premium Quality Standards
Our slip rings feature gold-to-gold contacts, IP68 waterproof protection, and are designed for high-speed operation up to 10,000 RPM with minimal electrical noise.
🔧 Custom Solutions Available
Need a custom slip ring design? Our engineering team specializes in bespoke rotary electrical connectors for industrial automation, robotics, and specialized machinery.
🌏 Global Distribution Network
From our Chennai facility, we serve customers across India and internationally. Fast delivery, technical support, and competitive pricing for slip ring solutions.
Frequently Asked Questions
What is a through bore slip ring?
A through bore slip ring is a precision electromechanical device that enables continuous electrical connection between stationary and rotating assemblies. It transmits power, signals, or data across a rotating interface without tangling wires.
What are slip rings used for?
Slip rings are essential components in industrial automation, robotics, wind turbines, medical equipment, broadcasting systems, and any application requiring electrical connection to a rotating platform. Common uses include CCTV surveillance systems, packaging machinery, and aerospace applications.
How do slip rings work?
Slip rings work through metal-to-metal contact between rotating and stationary brushes. As the rotor spins, spring-loaded brushes maintain continuous contact with conductive rings, enabling uninterrupted electrical transmission even during rotation.
